Oxyhydrogen HHO Flashback Flame Arrestor For OH200-OH600

Ask Lasest Price
Brand Name :	Okay Energy
Model Number :	FA-15
Certification :	CE, ISO9001
Price :	USD30-USD35/pcs
Payment Terms :	L/C, T/T, Western Union, MoneyGram, Credit Card
Supply Ability :	10000 sets per month
Delivery Time :	5-7days

Add to Cart

Product Details
Company Profile

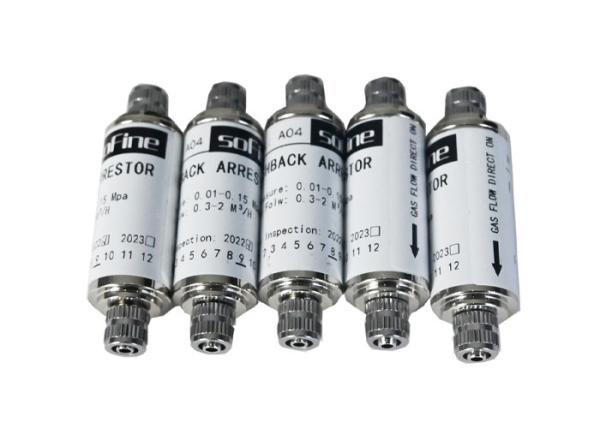

Oxyhydrogen HHO Flashback Flame Arrestor For OH200-OH600

Oxyhydrogen Spare Parts HHO Flashback Flame Arrestor For OH200-OH600

Product Description

Oxy-Hydrogen flashback arrestor is a kind of dry-type flashback arrestor which is made of international advanced high-technology nano ceramics anti-backfire tube. It can prevent the backfire from gas tube safely and continue to fire up to work after put out the flame. It is an ideal safe device for using hydrogen to work at present.

The flashback arrestor applies in welding, cutting and other similar workplaces to protect the operators' safety. It also can be applied in oxyhydrogen gas tube to be a safety device for keeping it from back-fire.

Technical Parameter

Model	FA-15
Working Medium	oxy-hydrogen gas,hydrogen gas,acetylene and so on
Opening Pressure	0.005MPA (0.05Kg.f/cm2)
Flux	<1000L/h (when pressure less than 2kg/cm2 )
Function	flame out the back-fire continuously
Connection Method	either ends are leather hose joint (ф5), to install in the leather hose

Oxyhydrogen HHO Flashback Flame Arrestor For OH200-OH600

Notice

1) The arrow mark on the flash back arrestor refers to the direction of airflow under the normal work.

You shouldn't install it reversely, otherwise the gas cannot pass through. You should check the joint whether there is any gas leakage.

2) The flash back arrestor is forbidden to be opened. Once it is opened, you must do the efficiency test again.

Qualified ones need to present the conformity certificate again, or it cannot be installed to use.

3) Once the flash back have any damage, you must stop to use immediately and renew it to continue to use. The flash back arrestor must force

to be replaced after using for half a year.

4) You must do the inspection by using the qualified efficiency test equipment when examining and repairing the flash back arrestor, qualified ones need to present the conformity certificate again. If you haven't specialized efficiency test equipment, you need to replace the flash back arrestor instead of repairing.

5) The factory package should be placed in a dry and ventilated place, the flash back arrestor is forbidden to touch

anything smeary and corrosive. Do not throw it heavily or the flash back arrestor will be damaged.
